Kitchen Suppression System
Pre-Engineered Commercial Kitchen Fire Suppression System
Rotarex (Brand Name: Firedetec) offers a reliable, space-efficient, and cost-effective fire suppression solution designed specifically for commercial kitchen environments. Utilizing proprietary pneumatic technology and a continuous linear sensor tube, this system delivers fast and automatic fire detection and suppression without the need for electricity or complex electronics.

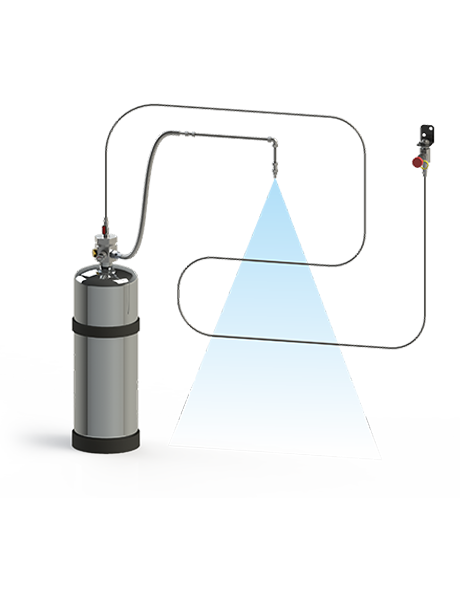

How It Works
- A flexible Fire Detection Tubing (FDT) is strategically installed inside the extractor hood—directly above high-risk cooking areas.
- When the temperature reaches 175°C, the FDT ruptures at the point closest to the heat source.
- The sudden depressurization triggers a pressure differential valve, releasing the Class F extinguishing agent directly onto the fire.
- The fire is quickly and effectively suppressed within seconds, minimizing potential damage and operational downtime.
Key Features
- Ultra-fast and reliable detection using heat-sensitive clean agent technology
- Easy and flexible installation—ideal for both new and retrofit applications
- No electricity or moving parts—operates completely pneumatically
- Highly economical compared to mechanical or electronic systems
- Low maintenance and minimal false discharge risk
- This system is a smart choice for restaurants, hotels, industrial kitchens, and food preparation facilities, ensuring uninterrupted kitchen operation and compliance with fire safety standards.
TECHNICAL SPECIFICATIONS
| MODEL | SPECIFICATIONS | MODEL | SPECIFICATIONS |
|---|---|---|---|
| Extinguishing Agent | (Rotarex) Wet Chemical System | Capacity | 9 Ltr |
| Working Pressure* | 16 bar | Sensor Tube | Grey |
| Sensor Tube Burst Temperature | 175 deg C | Cylinder | SS |
| Valve | Pi-Marking | Cylinder Approvals* | CE |
| System Approvals* | LPCB | Internal Diameter of Tube | 4 mm |
| Outer Diameter of Tube | 6 mm | Height of Cylinder | Approx. 350 mm |
| Diameter of Cylinder | 175 mm | Operating Temperature | 5 Deg C to 65 Deg C |
| Super pressurizing Agent | Dry Nitrogen | Cylinder Thickness | 1.5 mm |
